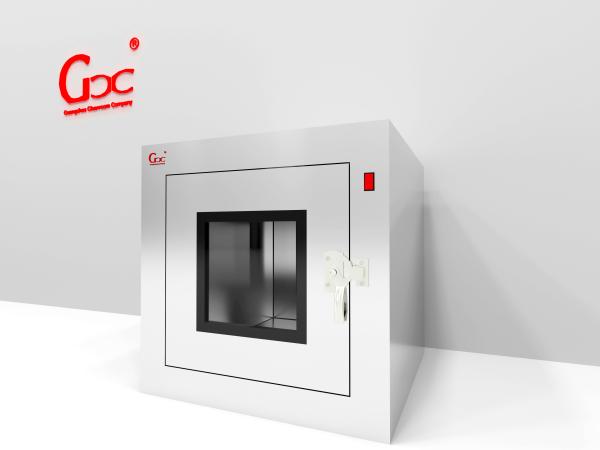

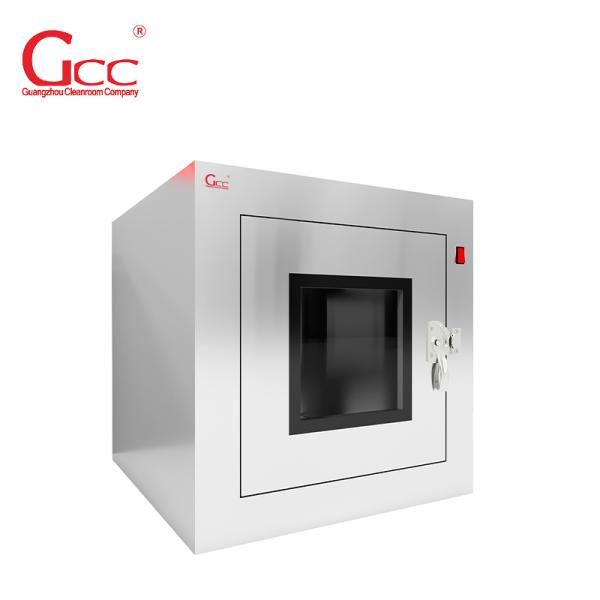

Cleanroom Pass Box With Mechanical Interlock
Cleanroom pass through box is a closed steel box with a double door used for transferring the material from nonsterile door to sterile door inside the clean room. People uses air showers to pass through into the clean room where material uses pass boxes to get into the clean room.
Complete system for the passage of small objects between two different rooms, fully integrated and flush-fitted to the partition wall.
Cleanroom pass through box allows the aseptic transfer of materials into and out of cleanroom areas. It lessens operator traffic inside controlled facilities, thus, decreasing the risk for cross-contamination of processes and final products.
Characteristics
1. Made of stainless steel bladder and powder-coated steel plate cabinet.
2. External smooth surface easy to clean
3. Double doors are mechanical interlocked to prevent from cross-contamination
4. Dedicated sanitary rubber strip to ensure airtightness
5. Equipped with UV light
Parameters
| Item |
GCC-CDC-500-W |
GCC-CDC-600-W |
GCC-CDC-500-N |
GCC-CDC-600-N |
GCC-CDC-700-N |
| Product name |
Pass Box |
| External SizeW*L*Hmm |
500W×500D×500H |
600W×600D×600H |
670W×570D×670H |
770W×670D×770H |
870W×770D×870H |
| Internal SizeW*L*Hmm |
330W×430D×330H |
430W×530D×430H |
500W×500D×500H |
600W×600D×600H |
700W×700D×700H |
| Box Material |
Cold-rolled steel sheet with baked paint or stainless steel |
| Internal Material |
stainless steel |
| Pass Box Classification |
It can be divided into standard pass box and floor-standing pass box (without channel flooring) |
| Power |
220V 50HZ |
| Optional Accessories |
1. Electronic interlock 2. Mechanical interlock 3. Ultraviolet germicidal lamp 4. Walkie-talkie |
| Note:Besides the above sizes, we accept custom orders for non-standard sizes |
Application
Widely used in clean environment, such as micro-electronics, laboratory, national defense, precise instrument, biopharming, opto-electronics, aseptic packaging, etc.
